V2

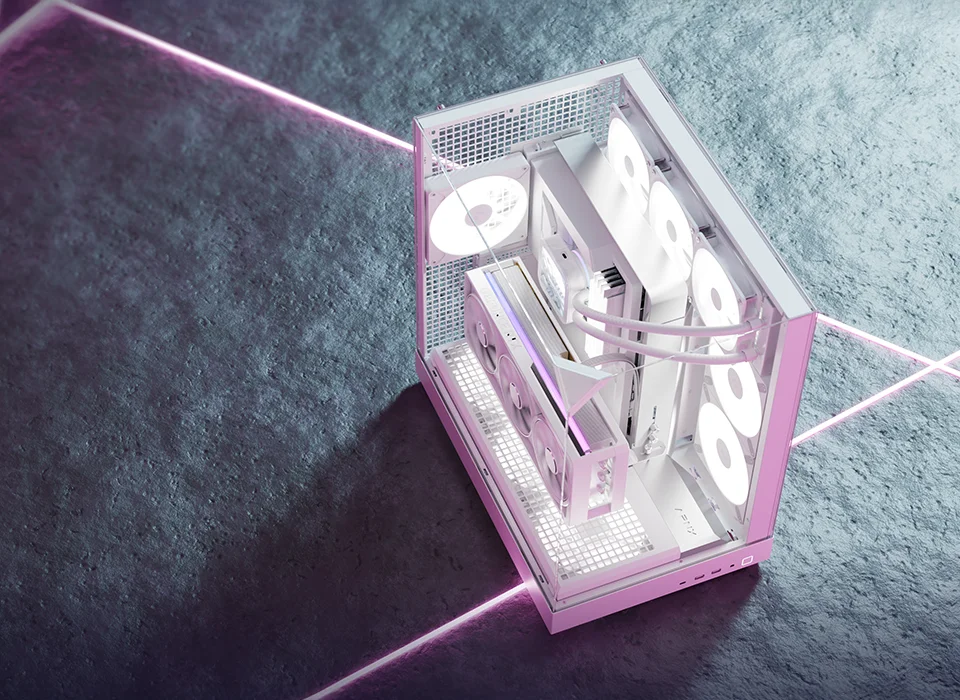

The APNX V2 is a premium PC case built for superior cooling, sleek aesthetics, and flexibility. Its three removable tempered glass panels offer a frameless panoramic view, while the floating motherboard design greatly improves overall airflow dynamics.
With support for up to 13 fans, 360mm radiators, and dual 16cm bottom fans, it ensures top-tier thermal performance. V2 supports ASUS and MSI reverse connector motherboards for cleaner cable management. Features like a GPU support bracket, removable motherboard cable cover, and swappable PSU/HDD tray enhance durability and customization.

• X-Pand Flow airflow design
• Massive cooling support
• Panoramic tempered glass panels
• Next-gen motherboard compatibility
• Streamlined cable management

Variation

Redefined Cooling Dynamics, Performance with Personality.

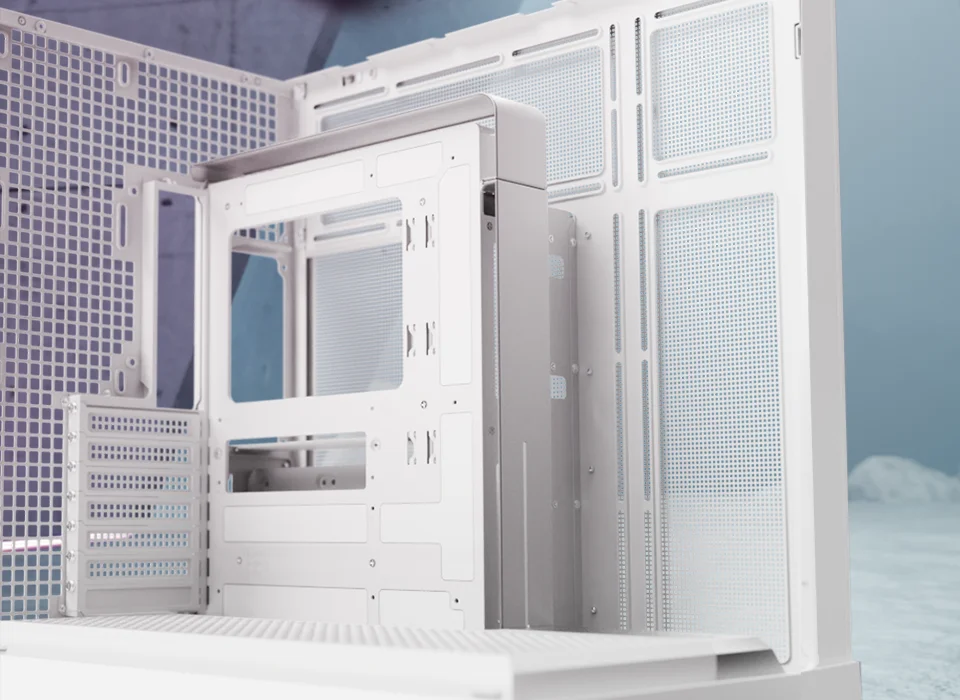

Innovative X-Pand Flow Design

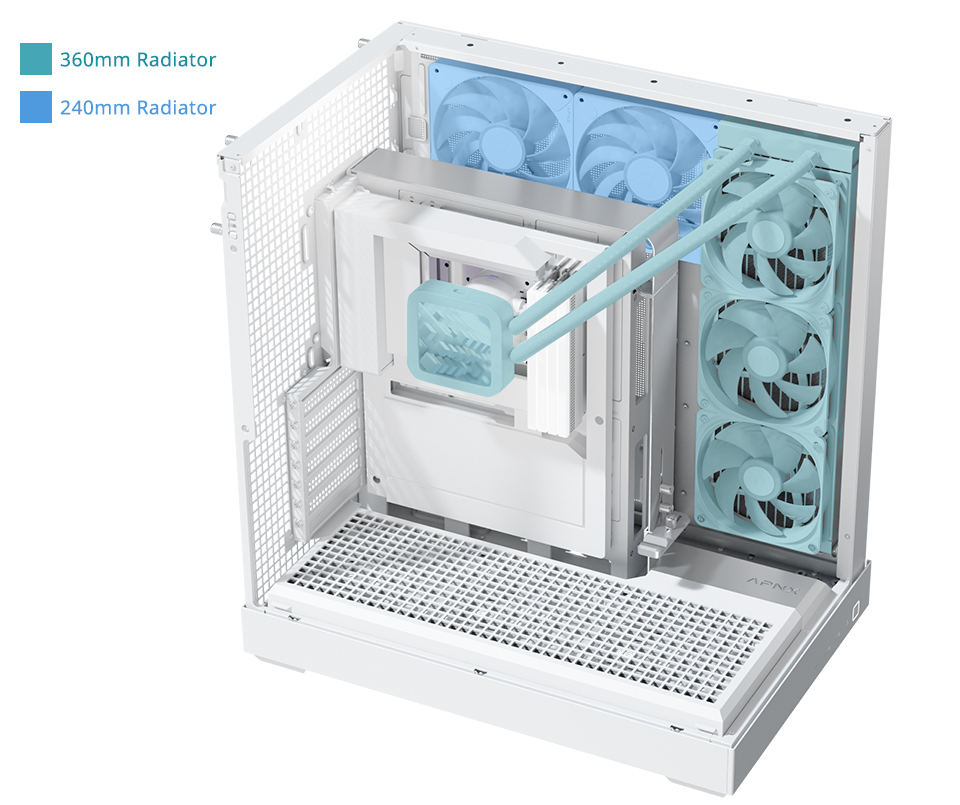

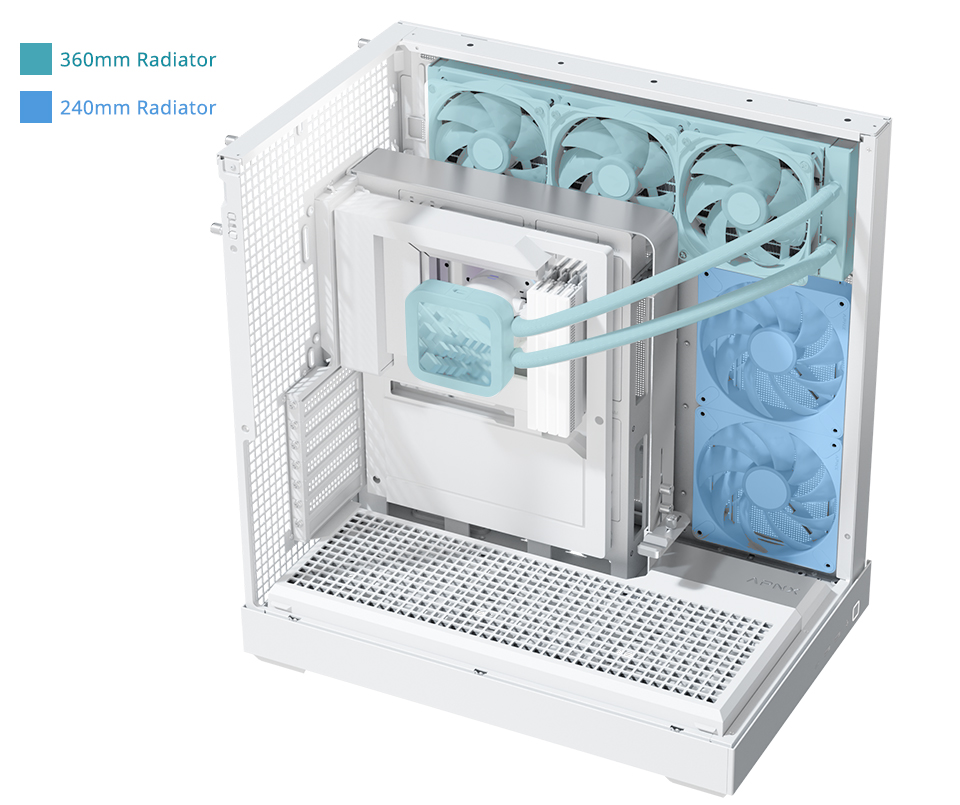

The headlining feature of the APNX V2 is its X-Pand Flow Design—a groundbreaking advancement in case engineering. True to its name, it optimizes cooling by expanding the space behind the motherboard tray. That can support up to two radiators (360mm+240mm), delivering superior cooling that outperforms competitors.

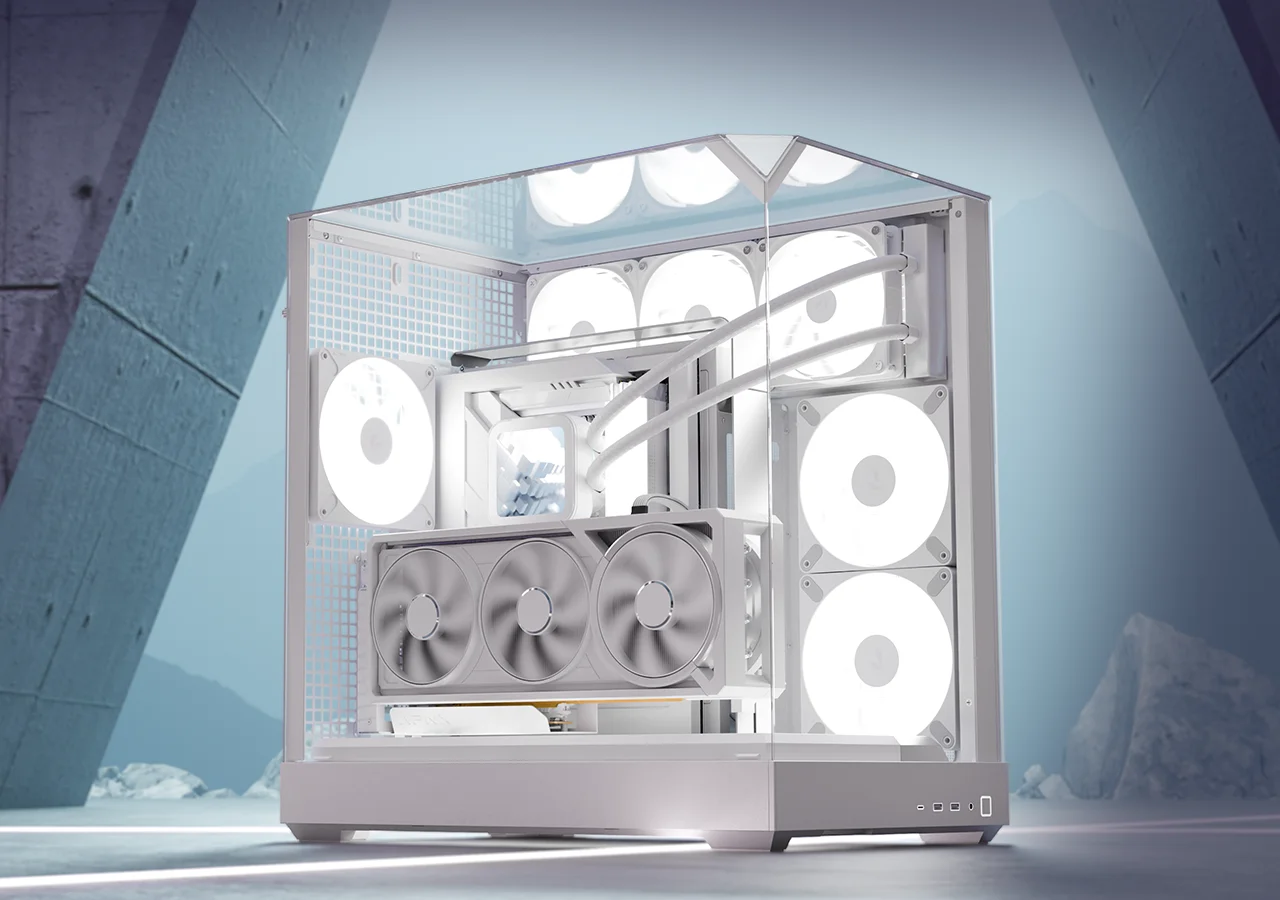

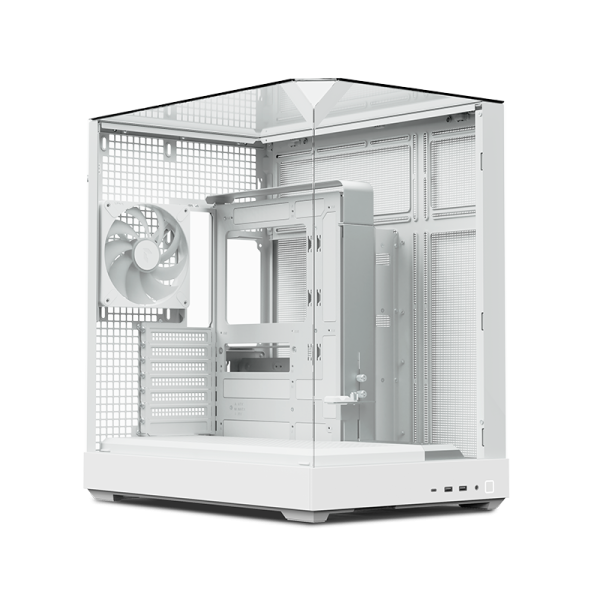

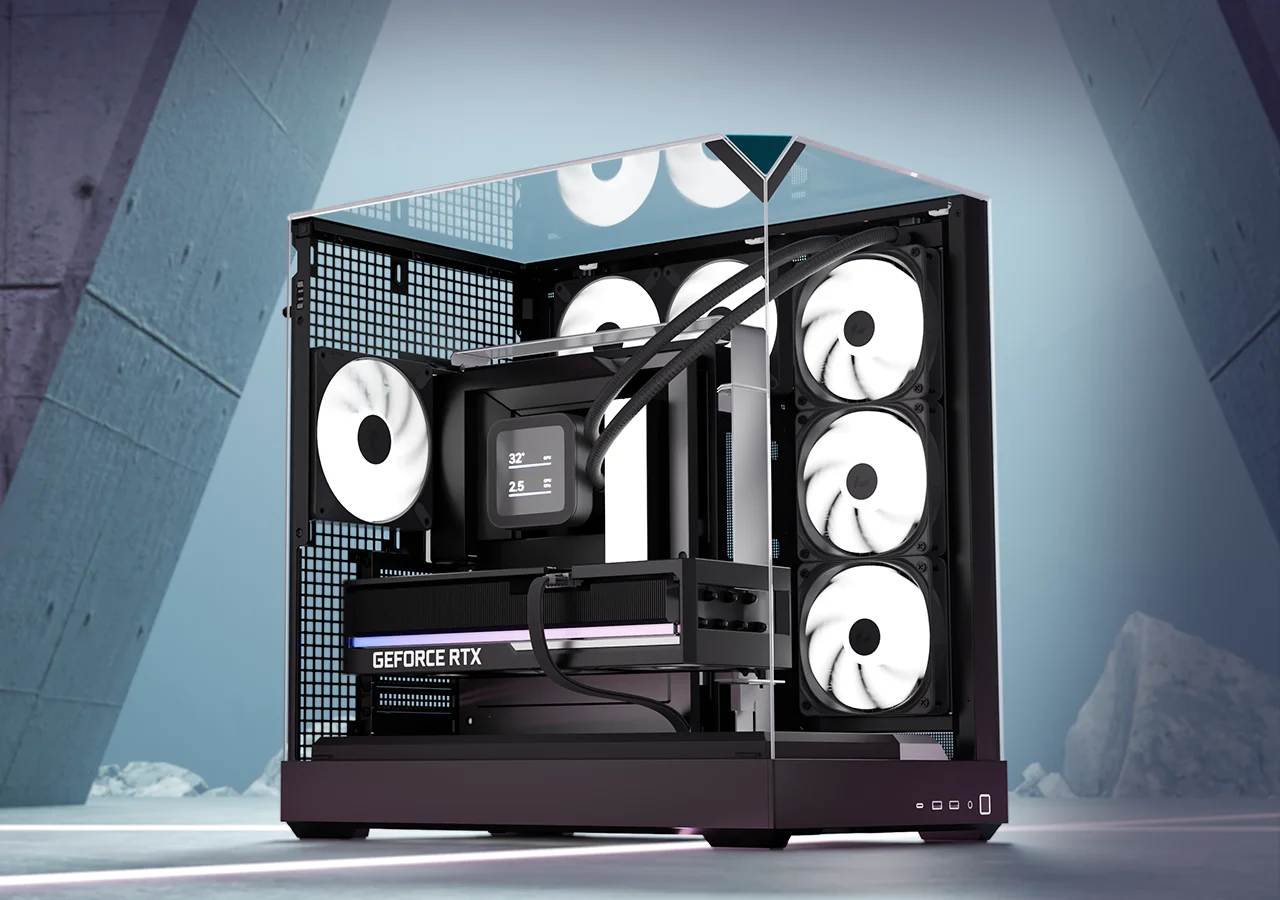

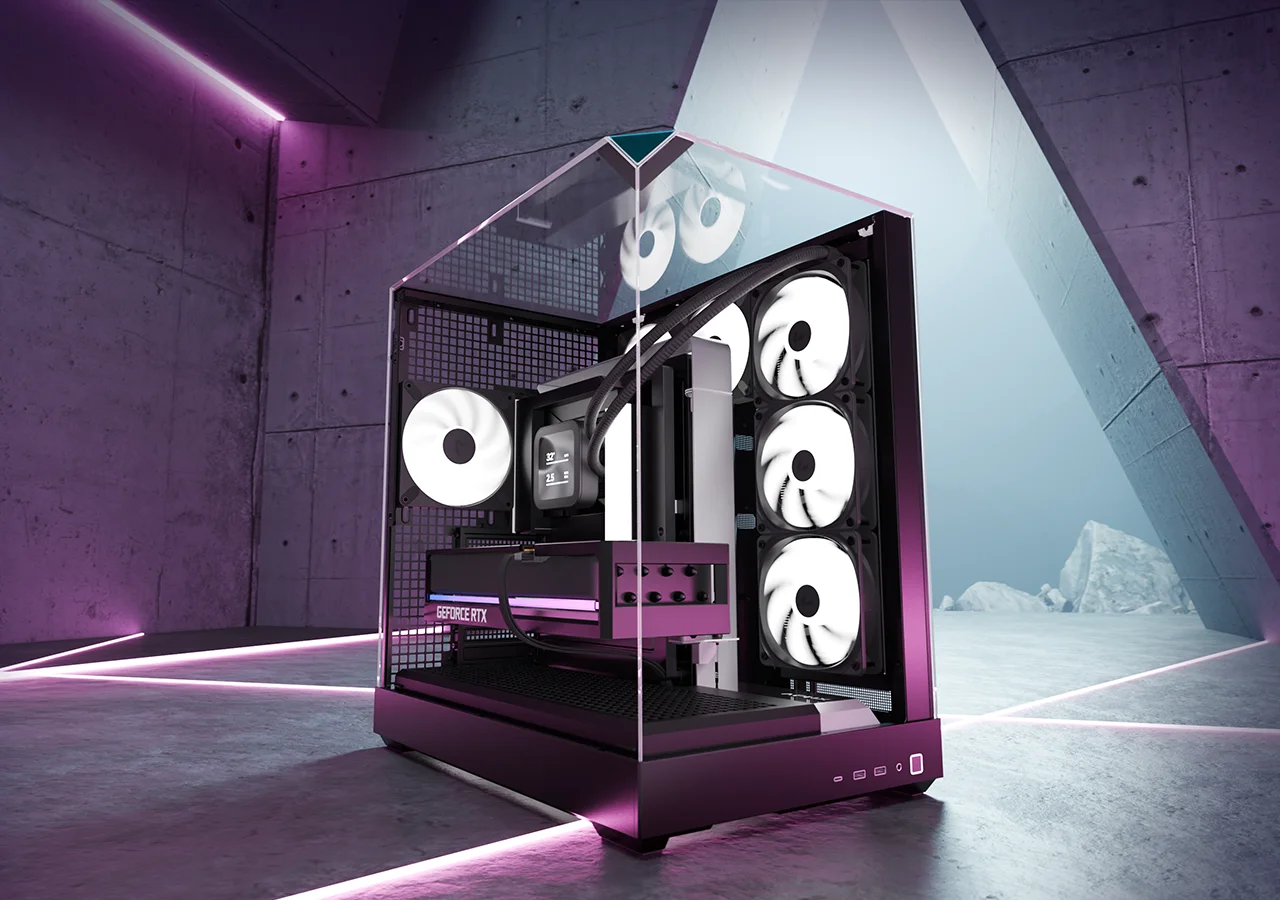

Crystal-Clear Panoramic View

At 86.5%, we offer the largest viewing area among all 3-panel tempered glass chassis, putting your setup on stunning display from all angles.

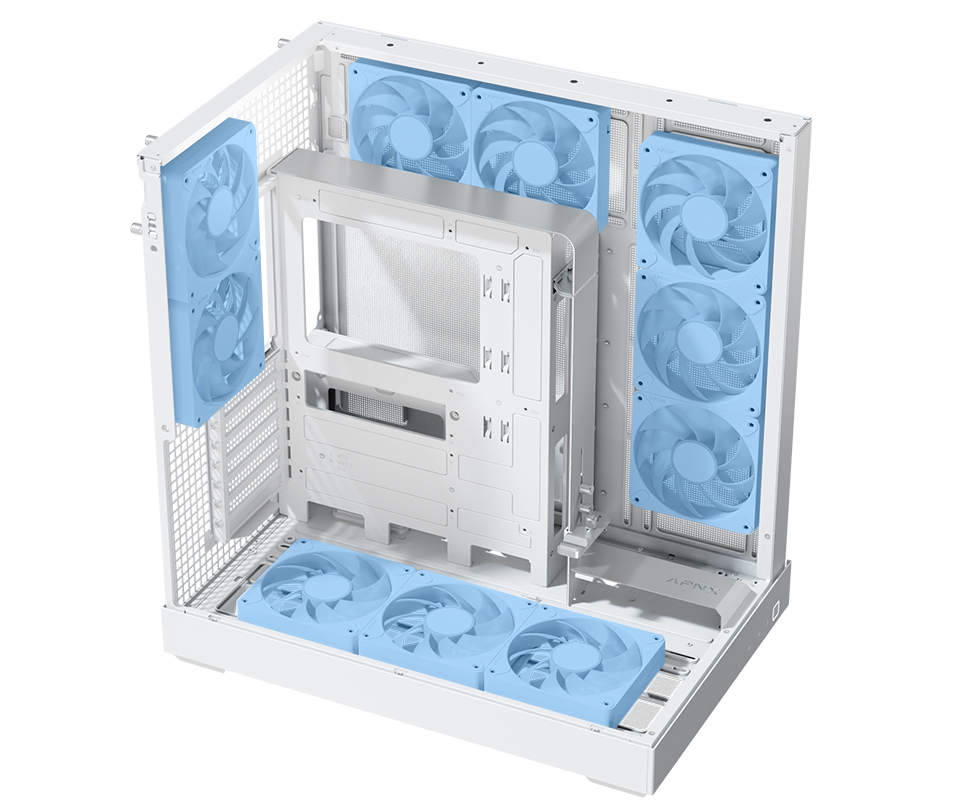

High-Airflow, Low-Noise Cooling

Right out of the box, 4 pre-installed 14cm high performance APNX fans provide outstanding performance.

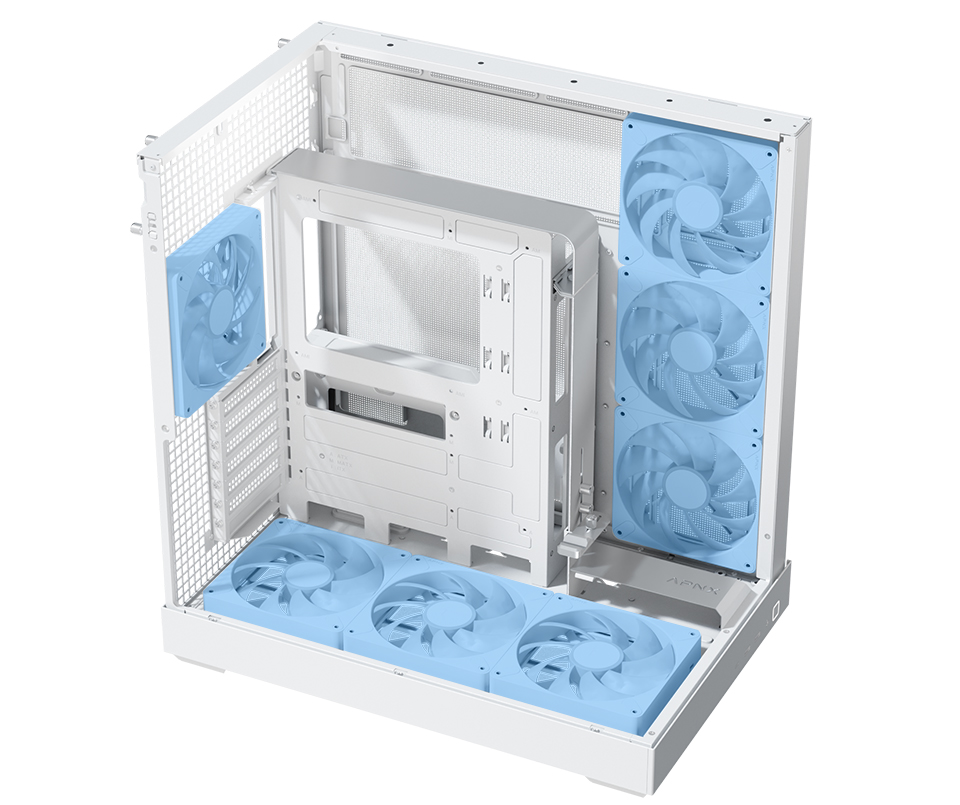

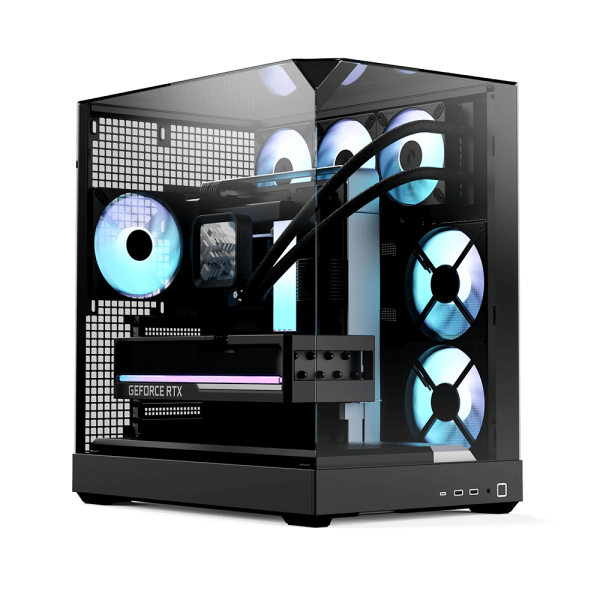

From dual AIOs and large radiator support to its 12cm, 14cm, and extra-large 16cm fan slots, this case has the most dynamic cooling installation options of its kind.

Removable Motherboard Cable Cover

Looking at the removable motherboard cable covers, you can see echoes of our signature frame style first introduced in the AP1-V cooler.
Beyond just tucking away cables for a neater look, they’re finished in silver paint to create a bold visual accent that stands out while complementing the case’s overall design.

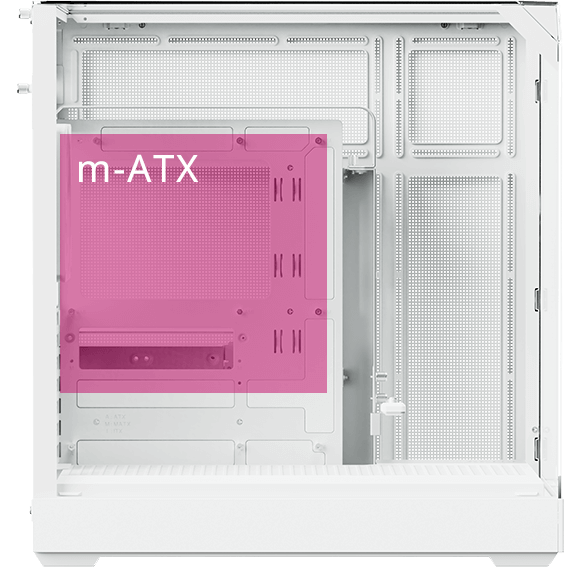

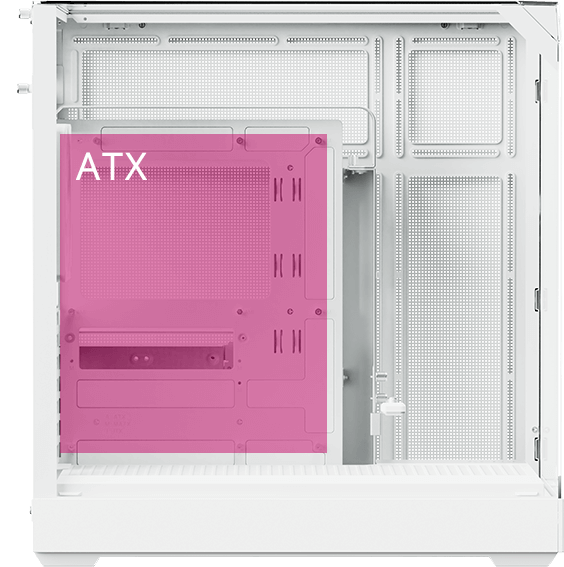

Next-Gen Motherboard Compatibility

Designed to support mainstream reverse connector motherboards, the APNX V2 can minimize visible cables for a cleaner build.
This optimized layout simplifies cable management, while a dedicated motherboard cover conceals unnecessary cutouts when using standard ATX or m-ATX motherboards.

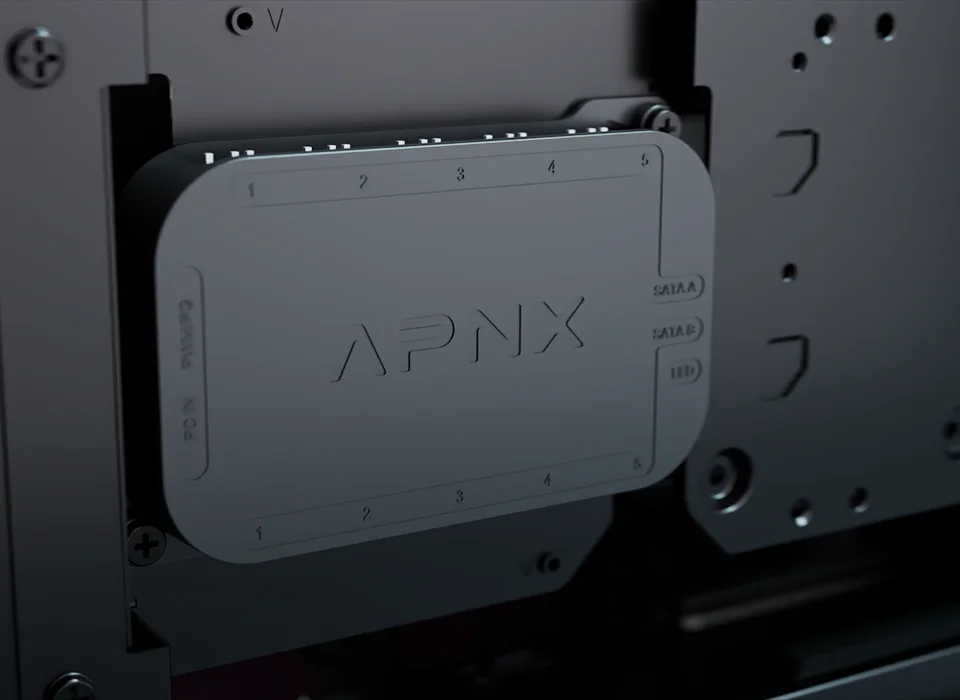

APNX ARGB PWM Hub 1 Included

Enjoy effortless cable management and synchronized lighting with the pre-installed APNX ARGB PWM Fan Hub 1 (10 port hub), ensuring optimal airflow and seamless control of your fans and RGB lighting.

Effortless Maintenance & Customization

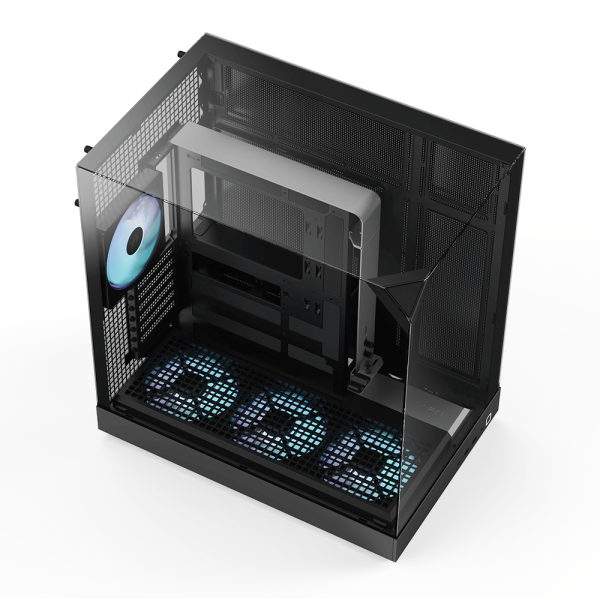

Designed for both form and function, the bottom fan cover provides a clean look while channeling airflow directly to the graphics card.

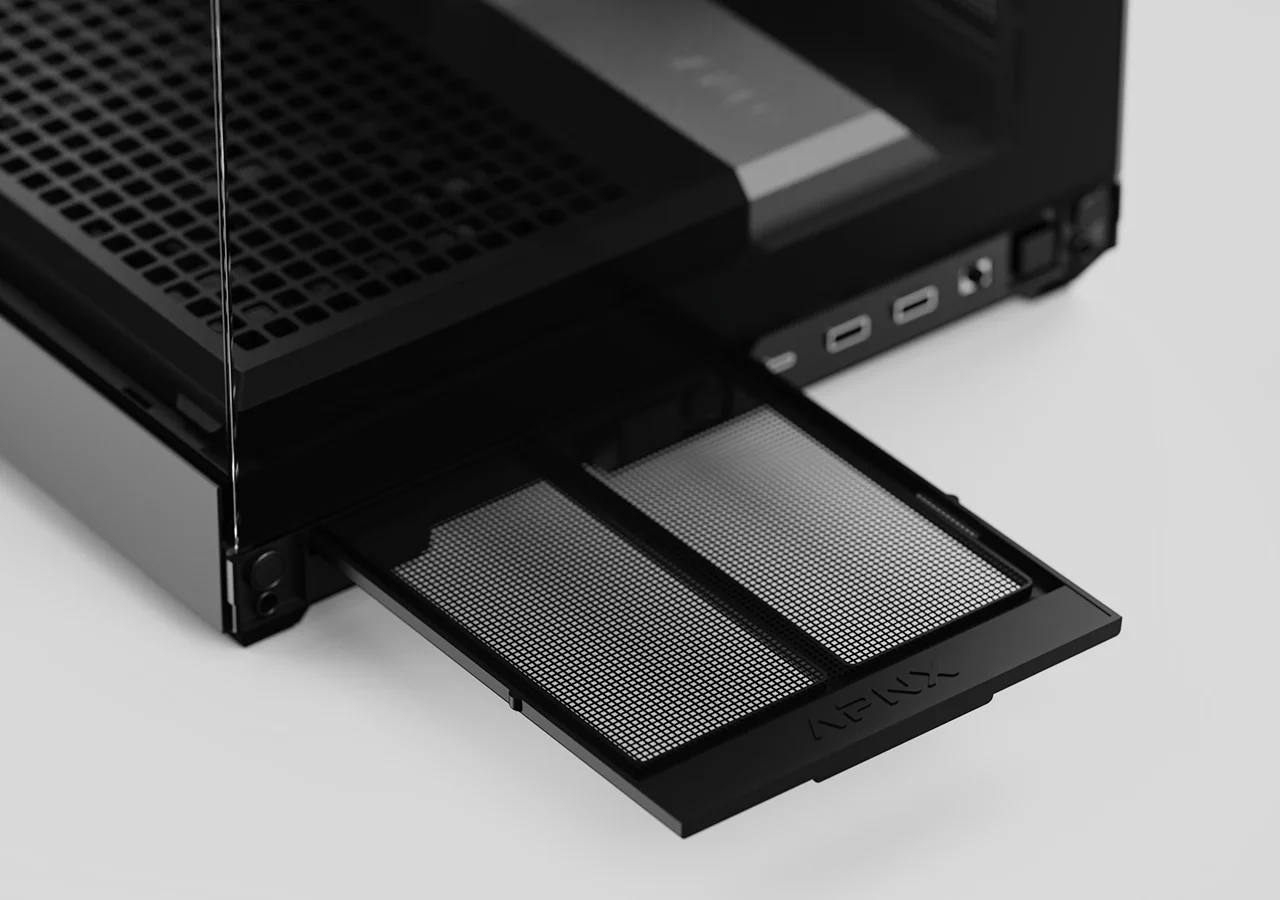

Additionally, the removable bottom filter makes cleaning hassle-free and extends the lifespan of your components.

Customizable Layout & Efficiency

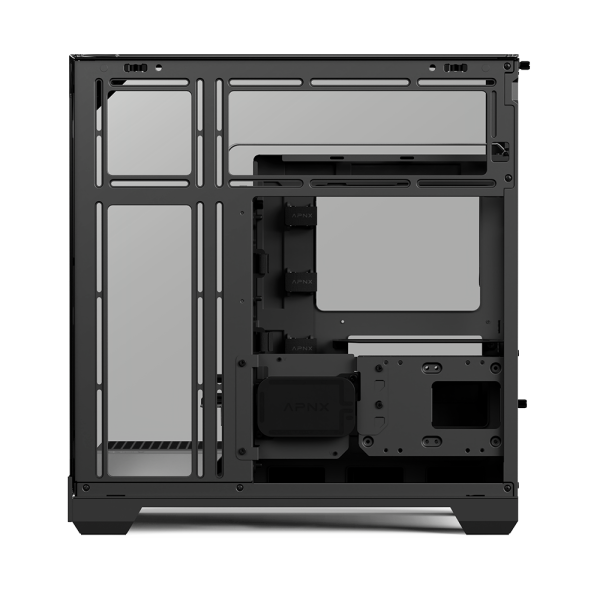

The easily swappable PSU and HDD tray positions allow you to adapt the case to different build layouts for maximum customization.
This feature helps optimize airflow and cable management, improving overall system efficiency.
V2 can accommodate 1 x 3.5” and 2 x 2.5” drives or 4 x 2.5” drives.

Stable & Secure GPU Support

The built-in GPU support bracket prevents sag, ensuring long-term structural integrity for heavy-duty graphics cards.
It also reduces stress on the motherboard, improving overall durability and stability.

Specifications & Downloads

Model	APX-V2-BK-FRB / APX-V2-WT-FRW
Case Type	Mid Tower
Colors	Black / White
Body Material	SGCC
Steel Thickness	0.8mm
Motherboards	ATX / Micro ATX / Mini-ITX
Case Dimensions	466 x 309 x 500 mm (D x W x H)
Capacity	71L
3.5” Drive Bays	1 Max. (1 x 3.5” / 2 x 2.5″)
2.5” Drive Bays	4 Max. (2 x 2.5” and 1 x 3.5” / 2 x 2.5″)
Expansion Slots	7
GPU Clearance	Supports GPU up to 445mm (W/O radiator in the front-right position)
CPU Cooler Clearance	Supports CPU cooler up to 183mm

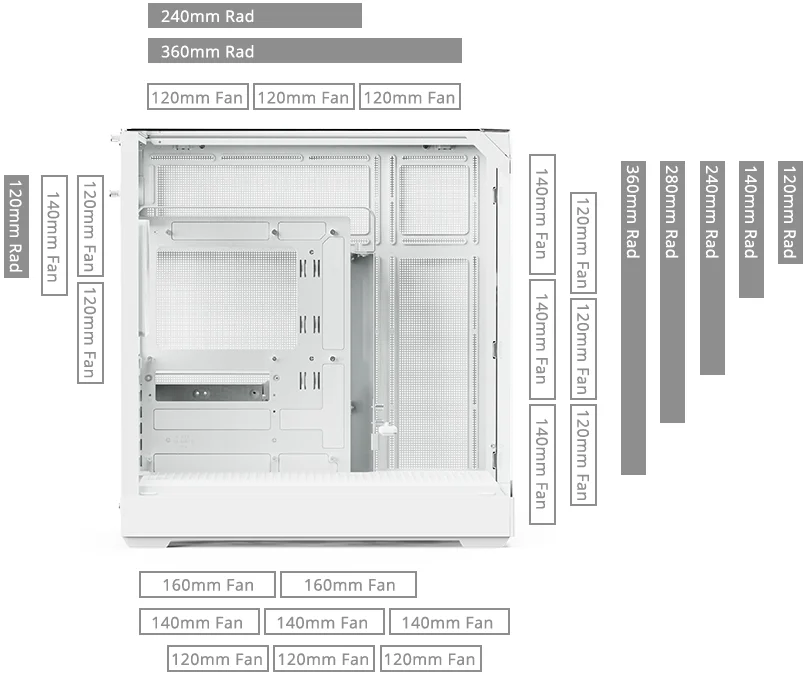

Fan Support	Right-Front: 120mm x 3 or 140mm x 3 (Max.) Right-Top: 120mm x 3 (Max.) Bottom: 120mm x 3 or 140mm x 3 or 160mm x 2 (Max.) (3x FP3-140 Case Version included) Rear: 120mm x 2 or 140mm x 1 (Max.) (1x FP3-140 Case Version included)
Radiator Support	Right-Front: 120 / 140 / 240 / 280 / 360mm Radiator (Optional) Right-Top: 120 / 140 / 240 / 360mm Radiator (Optional) Bottom: 120 / 140 / 240 / 280 / 360 Radiator (Optional) Rear: 120mm Radiator (Optional)
I/O Ports	USB3.2 Gen 2×2 Type-C x 1 \| USB3.2 Gen 1 Type -A x 2 \| HD Audio & Mic.
Net Weight / Gross Weight	11.8 KG / 14.2 KG
Internal Cable Management Depth	99mm
Power Supply	ATX PSU (Including cables, up to 270mm) (Optional)
