FP2
Performance fan with 30mm steel frame and reverse blade
A New Force
FP2 is a versatile performance fan suitable for both radiators and cases. Its 30mm design outperforms ordinary 25mm fans by 30-50%. The fan is encased in a premium steel plate frame and includes a reverse flow blade to let you customize your airflow direction.
Superior Cooling Performance
FP2’s 30mm thickness is not just for show – it’s all about performance. Enjoy a significant boost in cooling power with larger fan blades compared to standard 25mm fans.
30 mm
Steel Frame
30-50 %
Better Performance
More Efficient AirFlow
FP2 has impressive airflow and air pressure with lower RPM.
83.9 CFM
Airflow
3.49 H2O/mm
Air Pressure
500-1800 RPM
PWM Fan

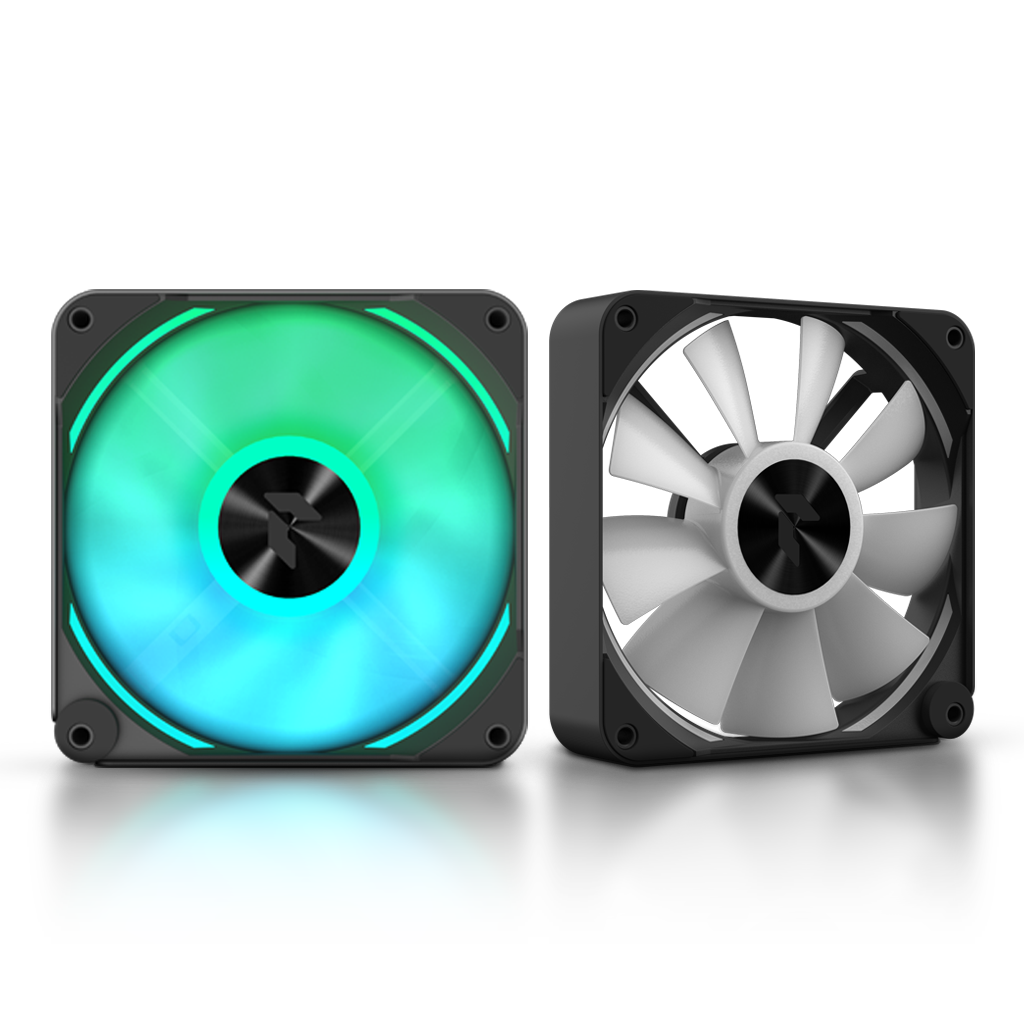

Reverse Flow Blade Included
Change the airflow direction according to your preferences with FP2’s quick and easy blade installation mechanics.
Customize Your Airflow
Enjoy an extra reverse flow fan blade which lets you change airflow direction while maintaining the sleek look and reliable performance of the main blade.
79.4 CFM
Airflow
2.89 mmH2O
Air Pressure
Fluid Dynamic Bearing
Industrial lubricant reduces friction between rotating components, enabling smoother and quieter fan operation while increasing its lifespan.
Jaw-Dropping Aesthetics with ARGB
The elegant frame of FP2 and the ARGB lightshow encased inside promise to complement any build. In addition, you have the power to turn the lighting on or off.
Cool Metallic Looks
The black or white steel frame of FP2 lends a premium feel to your PC as well as improving durability and strength.
Fits Like a Glove
FP2’s recessed frame design reduces its height by 3mm on liquid cooling radiators, making it ideal for space-saving installations.
Ultra Thick Shock-Absorbing Pad
Stability matters, and we’ve got you covered. Each APNX FP2 fan comes with an ultra thick shock-absorbing pad so your fan stays securely in place.
Specifications & Downloads
| Model | FP2-120 PWM ARGB |
| Fan Dimensions (L x W x H) | 120mm*120mm*30mm |
| Fan Speed | PWM 500-1800 rpm |
| Fan Starting Voltage | 5V |
| Rated Voltage | 12V |
| Rated Current | 0.4 A |
| Power Consumption | 4.8 W |
| Connector Type | PWM 4pin+ARGB 5V 3pin |
| Air Pressure | 3.49 H2O/mm |
| Air Flow | 83.87 CFM |
| Fan Noise Level | 15.3-34.8 dBA |
| Bearing Type | FDB Bearing |
| MTBF | 100000 hrs |
