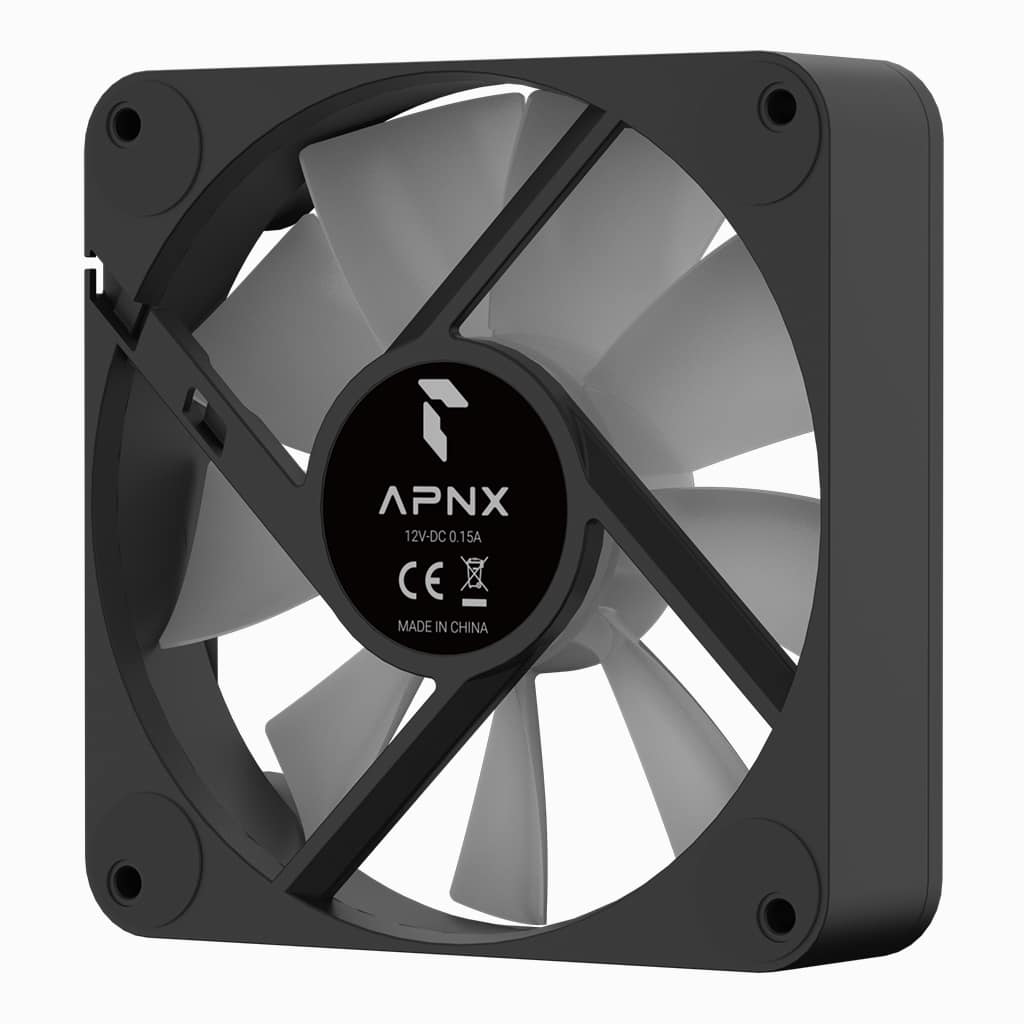

FP1

30mm performance fan with sleek new look

OVERVIEW

A New Force

FP1 is a high-performance fan for any PC case, designed to take your cooling experience to the next level. Its 30mm thickness and specially designed blades enhance the performance by 30-50%. FP1 is guaranteed to bring a radiant look to your build with its elegant frame design.

PERFORMANCE

Superior Cooling Performance

The impressive 30mm fan width brings you a 30-50% boost in cooling power compared to standard 25mm fans, keeping your components running smoothly.

30 mm
Frame Width

30-50 %
Better Performance

More Efficient AirFlow

FP1 reaches an impressive and efficient 86.9 CFM airflow with up to 1600 RPM.

86.9 CFM
Airflow

500-1600 RPM
PWM Fan

A Virtuoso of Ventilation

Larger fan blades improve airflow to dissipate more heat, leaving your system in a state of Zen-like tranquility.

CRAFTSMANSHIP

Jaw-Dropping Aesthetics with ARGB

The elegant frame of FP1 and the ARGB lightshow encased inside promise to complement any build. In addition, have the power to turn the lighting on or off at will.

Ultra Thick Shock-Absorbing Pad

Stability matters, and we’ve got you covered. Each APNX FP1 fan comes with an ultra thick shock-absorbing pad so your fan stays securely in place.

SPECS

Specifications & Downloads

Model FP1-120 PWM ARGB | FP1-140 PWM ARGB
Fan Dimensions (L x W x H) 120mm*120mm*30mm | 140mm*140mm*30mm
Fan Speed PWM 500-1600 rpm ± 10% | PWM 500-1300 rpm ± 10%
Fan Starting Voltage 5V
Rated Voltage 12V
Rated Current 0.4 A
Power Consumption 4.8 W
Connector Type PWM 4pin+ARGB 5V 3pin
Air Pressure 2.26 mmH2O | 1.67 mmH2O
Air Flow 74.6 CFM | 86.9 CFM
Fan Noise Level 33.2 dBA | 32.9 dBA
Bearing Type Hydraulic Bearing
MTBF 60000 hrs
