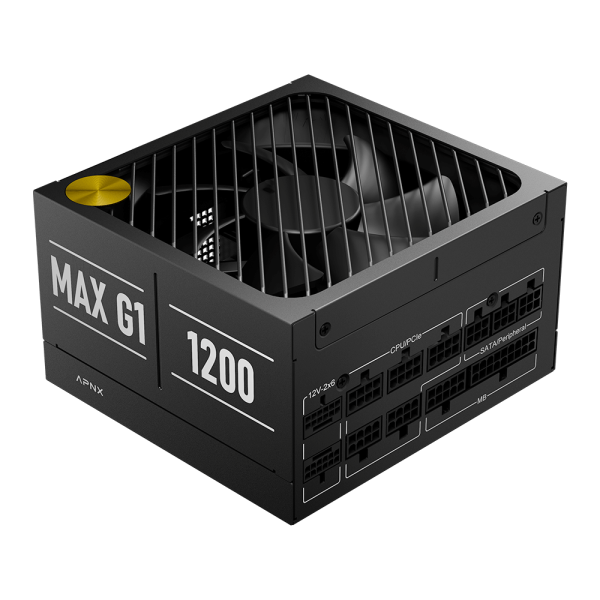

MAX G1

The APNX MAX G1 is a premium AC-to-DC switching power supply, fully compatible with Intel ATX 3.1 multi-rail desktop platforms. It features Active Power Factor Correction (APFC), a resonant converter, and synchronous buck DC-to-DC conversion for stable 3.3V and 5V outputs. Certified 80 PLUS Gold and Cybenetics Platinum for exceptional real-world efficiency, the MAX G1 also includes a Zero RPM switch for silent operation during low loads. Its fully modular design allows for clean, customizable cable management, making it the perfect choice for high-performance, clutter-free builds.

  • Compliant with the latest ATX 3.1 and PCIe 5.1 standards, featuring a more secure 12V-2×6 connector
  • Equipped with 100% high-grade 105°C Japanese capacitors, ensuring long-term durability, stability, and consistent performance over time
  • The compact 140mm shell facilitates easier installation in cases with limited space.
  • Featuring a custom 135mm fluid dynamic bearing fan with Zero Fan Mode, the PSU operates silently at light loads for an uninterrupted experience
  • Seven different protection mechanisms ensure your PC’s resilience against potential issues: OVP, UVP, OPP, SCP, OCP, OTP, and Input Surge & Inrush Protection
  • Compliant with ErP 2013 Lot 6 and ErP 2014 Lot 3 and Vampire Power below 0.25W
  • Fully Modular Design: Connect only the cables you need to reduce clutter, enhance airflow, and create a cleaner, more organized build
  • Certified 80 PLUS Gold and Cybenetics Platinum for outstanding real-world efficiency and ultra-low standby power draw, combining top-tier performance with eco-conscious design


FIND RETAILER
MAX G1
PERFORMANCE
CRAFTSMANSHIP
GALLERY
SPECS
VIDEOS

Maximum Reliability in a Compact Shell

80 PLUS GOLD

80 PLUS GOLD

PCIe Gen 5.1 Support

PCIe Gen 5.1 Support

Cybenetics Platinum

Cybenetics Platinum

ATX 3.1 Compliance

ATX 3.1 Compliance

10 Years Warranty

10 Years Warranty

High-grade Capacitors

High-grade Capacitors

Tested under full load at 40°C

Tested under full load at 40°C

null

A lot of things can go wrong when entering a new market, and APNX has successfully avoided those pitfalls. The APNX MAX G1 1200 performed admirably…

null

APNX simply uses a plastic coating into which a structure is imprinted that provides a sleeve look. This solution should be quite robust and looks quite chic…

Built to Last

Designed with premium components rated for 100,000 hours at full load and 40°C, this PSU ensures rock-solid reliability under demanding conditions. Unlike most competitors rated at just 25°C, it’s built to endure higher thermal stress—delivering nearly twice the lifetime and unmatched peace of mind.

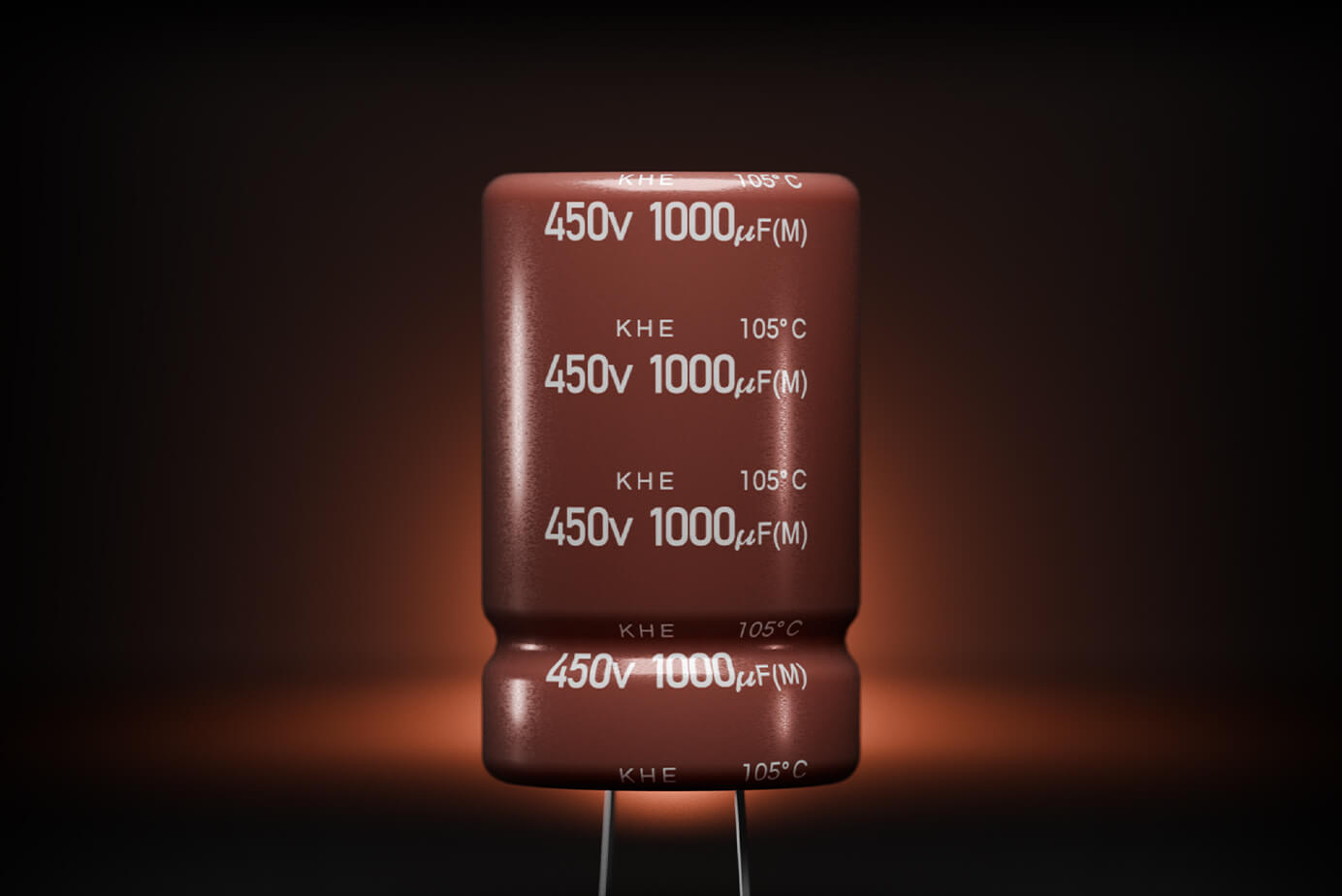

105°C Premium Japanese Capacitors

Built with 100% high-grade 105°C Japanese capacitors, this PSU ensures long-term durability and rock-solid voltage regulation.Enjoy consistent, reliable performance across gaming, rendering, and multitasking.

Ready for ATX 3.1 & PCIe 5.1

The MAX G1 fully supports the newest platform standards, including the safer 12V-2×6 connector for reliable GPU performance and long-term compatibility.

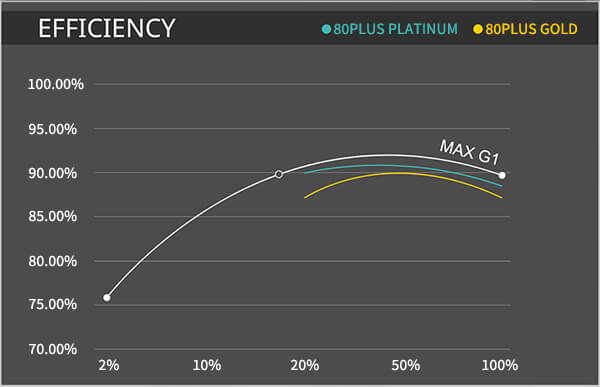

Eco-Conscious Efficiency

Certified 80 PLUS Gold and Cybenetics Platinum, the MAX G1 delivers top-tier power efficiency and ultra-low standby consumption. Meets ErP 2013 Lot 6 and ErP 2014 Lot 3 standards with vampire power under 0.25W.

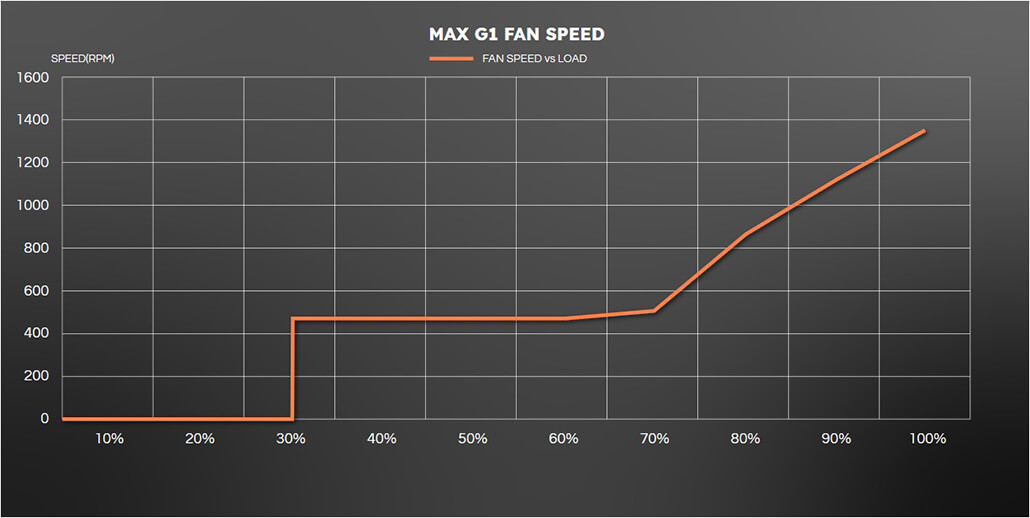

Whisper-Quiet Cooling with Zero RPM Mode

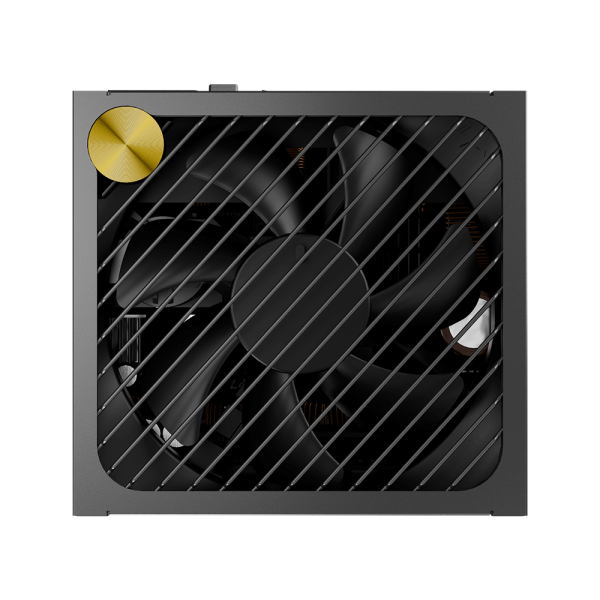

A 135mm fluid dynamic bearing fan stays silent at low loads, delivering smooth thermals without unwanted noise.

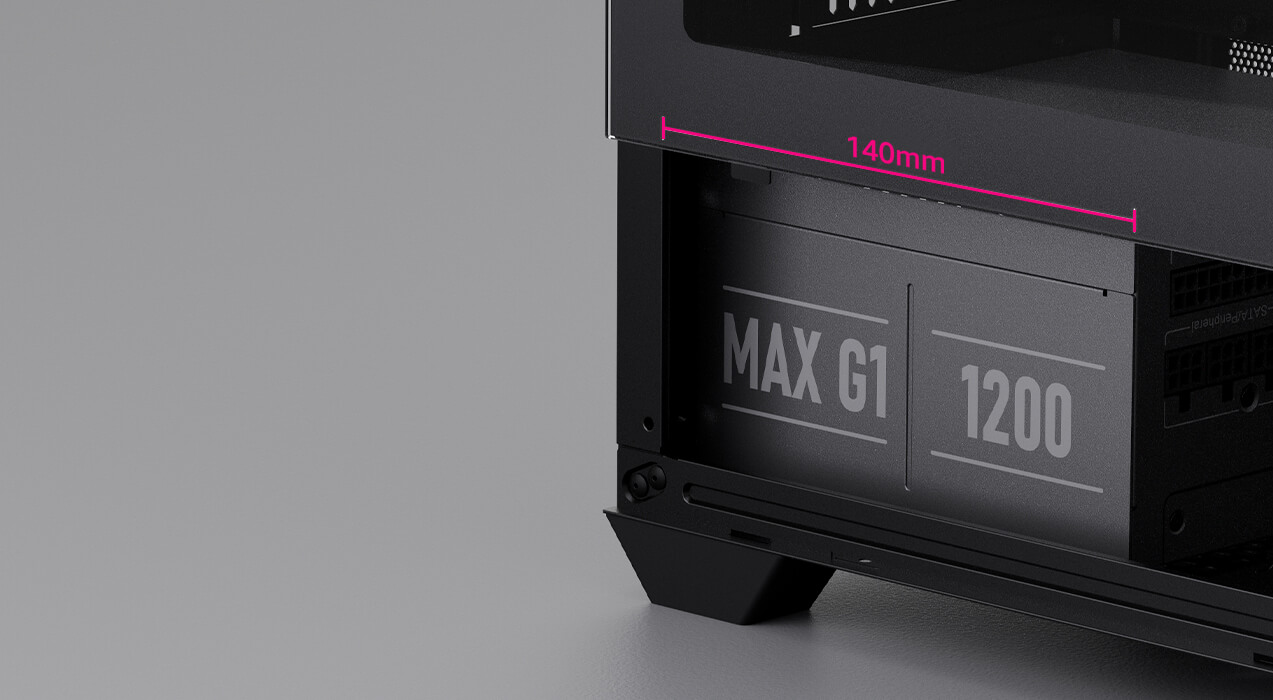

Compact 140mm Body

A shorter 140mm design ensures effortless installation in tight cases, perfect for clean and space-efficient builds.

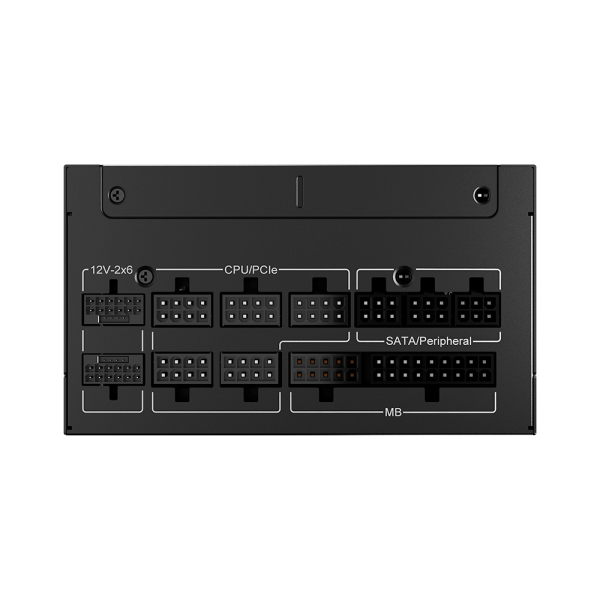

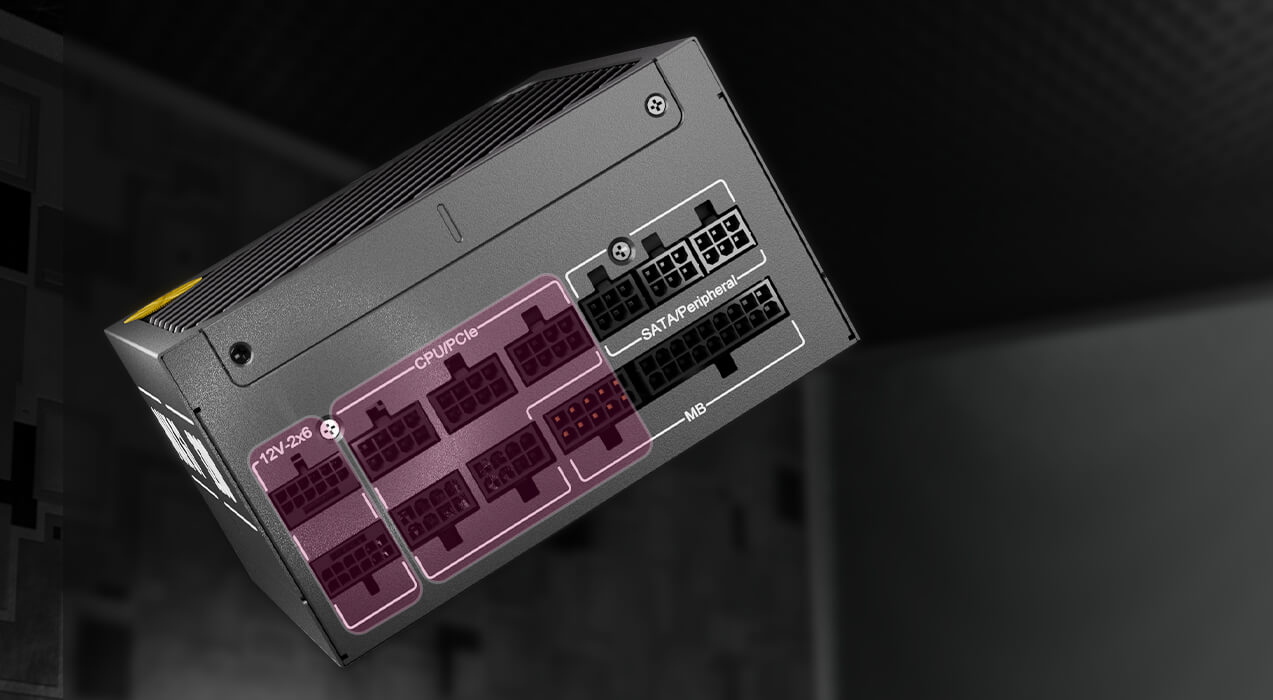

Fully Modular Design

Use only the cables you need to reduce clutter and boost airflow. A cleaner, more efficient build starts with modular cable flexibility.

Premium Cables with Cable Combs

Debossed cables and included combs keep wiring aligned and organized for a cleaner, more premium build.

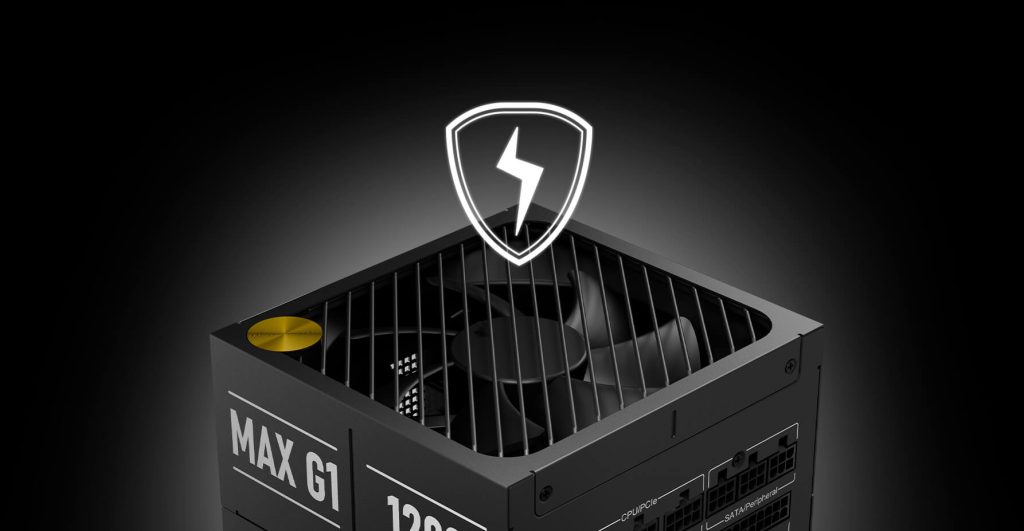

10-Year Warranty & 7-Way System Protection

Seven advanced protections—OVP (Over Voltage Protection), UVP (Under Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), OCP (Over Current Protection), OTP (Over Temperature Protection) and surge/inrush protection shield your PC from electrical hazards. Backed by a 10-year warranty and ErP compliance, it ensures long-term efficiency, eco-friendliness, and reliability.

Specifications & Downloads

MAX G1 1200

AC INPUT RATING 100V-240V~ 15.0A-7.5A 50Hz-60Hz (not for China)
200V-240V~ 7.5A 50Hz-60Hz (only for China)
MODEL NO. ANPS-2501
DC OUTPUT RATING
+3.3V
+5V
+12V
+5VSB
20A
20A
100A
3A
TOTAL POWER
110W
1200W
15W
1200W

MAX G1 1000

AC INPUT RATING 100V-240V~ 13.0A-6.5A 50Hz-60Hz (not for China)
200V-240V~ 6.5A (only for China)
MODEL NO. ANPS-2502
DC OUTPUT RATING
+3.3V
+5V
+12V
+5VSB
20A
20A
83.3A
3A
TOTAL POWER
110W
999.6W
15W
1000W

MAX G1 850

AC INPUT RATING 100V~240V~ 10A~5A 50Hz-60Hz
MODEL NO. ANPS-2503
DC OUTPUT RATING
+3.3V
+5V
+12V
+5VSB
20A
20A
70.8A
3A
TOTAL POWER
110W
849.6W
15W
850W
MAX G1 1200 24-pin ATX Power Cable: 600mm, Output Connectors: 1
4+4-pin CPU Power Cable: 700mm, Output Connectors: 1
8-pin CPU Power Cable: 700mm, Output Connectors: 1
3x 6+2-pin PCIe Power Cable: 650mm, Output Connectors: 3
2x 12V-2×6 PCIe Cable: 650mm, Output Connectors: 2
2x SATA Cable: 500+150mm, Output Connectors: 8
SATA+Peripherals Cable: 500+150mm, Output Connectors: 2xSATA, 2xPeripheral
MAX G1 1000 24-pin ATX Power Cable: 600mm, Output Connectors: 1
4+4-pin CPU Power Cable: 700mm, Output Connectors: 1
8-pin CPU Power Cable: 700mm, Output Connectors: 1
3x 6+2-pin PCIe Power Cable: 650mm, Output Connectors: 3
12V-2×6 PCIe Cable: 650mm, Output Connectors: 1
2x SATA Cable: 500+150mm, Output Connectors: 8
SATA+Peripherals Cable: 500+150mm, Output Connectors: 2xSATA, 2xPeripheral
MAX G1 850 24-pin ATX Power Cable: 600mm, Output Connectors: 1
4+4-pin CPU Power Cable: 700mm, Output Connectors: 1
8-pin CPU Power Cable: 700mm, Output Connectors: 1
3x 6+2-pin PCIe Power Cable: 650mm, Output Connectors: 3
12V-2×6 PCIe Cable: 650mm, Output Connectors: 1
2x SATA Cable: 500+150mm, Output Connectors: 8
SATA+Peripherals Cable: 500+150mm, Output Connectors: 2xSATA, 2xPeripheral

MAX G1 user manual download.
